Diesel Engine –
425 hp (317kW) Tier III, engine soundproofing, enclosed engine compartment

Hydraulic Oil Reservoir
420 gallon (1589 liter)

Fuel Reservoir
126 gallon (476 liter)

2 Hydraulic System Heat Exchanger
w/electric fan

Hydraulic Pump System

• (2) triple stage hydraulic pumps
• (1) double stage hydraulic pump
• (1) pressure relief manifold for convenient

2 Crawler Tracks

• length: 14 ft (4.3 m)
• width: 14 inch (35 cm)
• 6 inch (15 cm) pitch – triple grouser shoes
• 101:1 gear reduction
• travel speeds 0-141 ft. (0-42 m) per minute
• sealed and lubricated tracks

Light System

• for night operation
• front and rear flood lights
• clearance lights

Grade Ski
for following grade on previous cut orexisting slab

Two Belt Conveyor System

• 36 inch (91 cm) x 35 ft. (10.6 m) rear conveyor standard
• variable belt speed up to 420 ft. (128 m) per min.
• hydraulic swing
• hydraulic elevation
• hydraulically powered, direct drive, non-cleated
• single lever joy stick control

Lower Conveyor

• 36 inch (91 cm) x 15 ft. 8 inch (4.8 m) lower conveyor
• variable belt speed, up to 420 ft. (128 m) per min.
• hydraulically powered, non-cleated

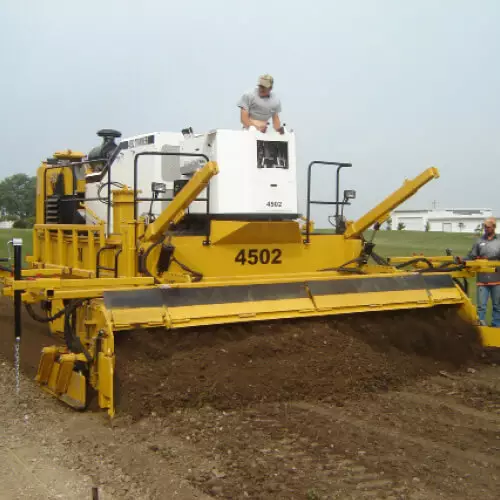

12 Ft. 6 Inch (3.8 M) Sectional Trimmer Head

• dual, internally mounted drives
• 32 inch (81 cm) diameter trimmer head
• 104 interchangeable carbide tip cutter teeth
• internally mounted drive system
• hydraulically controlled side forms
• forward rotation at cutting point

Emergency Shut Down System

Dual Grade System

• grade sensing from right and left side
• telescoping sensor arms to allow stringline controls on both sides of thetrimmer, simultaneously

Steering System

• 1 hydraulic stringline sensor
• steer from right or left hand side of machine
• automatic and manual steering, controlled from operator’s platform

Intermittent Shut-Down System

• single switch operation
• electronic over hydraulic
• controls all critical functions of machine:
  grade, travel, trimmer head, both belts

Operator’s Platform

• hydraulic system pressure gauges grade, travel,trimmer head, belts
• high visibility “wrap around” console
• engine controls and monitoring devices mounted on console
• safety railing
• engineered for easy monitoring of all machinefunctions
• seat/canopy

Transport Dimensions

• width: (head removed) 10 ft. 10 inch (3 m)
• length: (head removed) 42 ft. 6 inch (3 m)
• base machine weight: (head removed)approx. 49,000 lbs. (22226 kg)
• head weight – approx. 11,000 lbs. (4990 kg)
