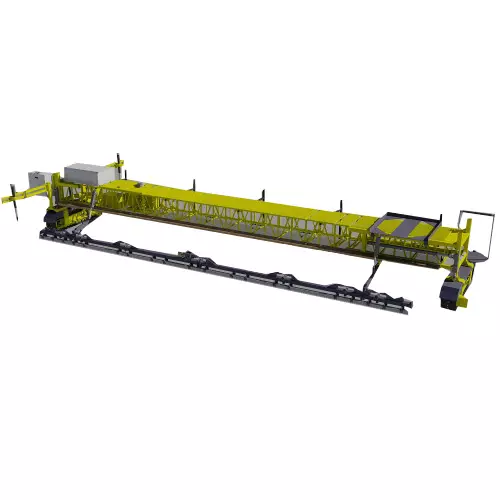

Turbo Charged Diesel Engine –

• 112 hp (82.3 kW) Tier III
• enclosed engine compartment
• engine soundproofing standard

Hydraulic Oil Reservoir
55 gallon (208 liter)

Fuel Reservoir
46 gallon (174 liter)

1 Hydraulic System Heat Exchanger
with electric motor

Hydraulic Pump System
(1) 4 section hydraulic pump

12 ft. – 28 ft. (3.65 m – 8.5 m) Slab Width

• 3 ft. (91 cm) right and, 3 ft. (91 cm) left telescoping frame
• tubular steel frame
• frame extensions included in standard
  width package: (2) 4 ft. (121 cm), (1) 2 ft. (61cm)
• main- frame jacks to assist with width change

2 Track (continuous rubber) Drive

• (2) 8 ft. (2.43 m) long x 11.8 inches (30 cm) wide tracks
• hydrostatic drive
• 140 ft. / 42.6 m per minute travel

Hydraulic Grade Control

• 4 hydraulic stringline sensors provide automated grade control
• 4 hydraulically controlled grade towers
• manual and automatic control of grade towers from the operator’s platform

Steering System

• 2 hydraulic stringline sensors
• steer from right, left or rear side of machine
• automatic and manual steering, controlled from operator’s platform
• forward and reverse steering

Curing System

• hydraulically controlled mechanical agitation, variable speed
• triple filtration system for cure material
• excess flow return liquid agitation
• adjustable pressure regulator
• hydraulically powered cure pump w/pressuregauge, variable speed
• 175 gallon (662 liter) cure tank
• 3 way stainless steel quick disconnect ‘fan’ type nozzles with ‘no-drip’ bodies
• polyurethane wind guard

Power Rinse System

• (1) 55 gallon (208 liter) rinse tank
• controlled from operator’s platform

Wire Tine Texturing Assembly – Transverse OR Longitudinal – Customer Choice

• TRANSVERSE : carriage for 10 ft. (3.05m) texturing broom (broom not part of standard equipment)
• LONGITUDINAL : broom rack full width of machine (broom not part of standard equipment)
• automatic or manual control of texturing mechanism variable speed
• hydraulic adjustable crown
• automatic shut-off of broom at end of cycle (transverse)

Operator’s Platform

• hydraulic system pressure gauges: travel, spray, tining
• hydraulic controls: travel, agitation, tining, drag
• high visibility “wrap around” console
• engine controls and monitoring devices mounted on console
• safety railing
• engineered for easy monitoring and excellent view of all machine functions
• operator seat
