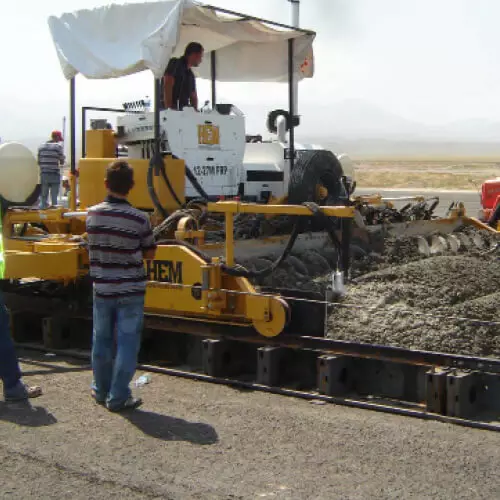

Diesel Engine –
175 hp (130kW) Tier III, engine soundproofing, enclosed engine compartment

Hydraulic Oil Reservoir
161 gallon (609 liter)

Fuel Reservoir
52 gallon (197 liter)

Hydraulic System Heat Exchanger
w/electric fan

12 Hydraulic Vibrators

• vertical adjustment controlled from operator platform
• individual or en-masse vibrator speed controls
• automatic shut-off with machine travel
• maximum flow 4 gallon (15.14 liter) per minute
• normal operating pressure 800 – 1300 psi

12 Hydraulic Vibrator Circuits

• with individual variable controls
• pressure compensated

Hydraulic Pump System

• (2) triple stage hydraulic pumps
• (1) pressure relief manifold for convenient pressure adjustments and monitoring

12 Ft. – 27 Ft. (3.65 M – 8.2 M) Paving Width by 6 inch (15 cm) increments

• 12 ft. (3.65 m) main frame ( minimum width )
• 24 inch (61 cm) structural frame
• frame extensions included in standard width package:
  (2) 4 ft. (122 cm), (2) 2 ft. (61 cm)
  (2)1 ft. (30 cm), (2) 6 inch (15 cm)

4 Form Riding Wheels

• hydraulically controlled rear form wheels(non-powered)
• wheels are urethane covered for durability
• adjustable front form wheels

Paving Pans

• bolt-together sections to match frame extensions, 1/4 inch x 18 inch x 48 inch, 6.35 mm x 45.7 cm x1.22 m
• pans installed with 6 bolt “quick disconnect” mounting
• hydraulic power crown controlled from operator console
• curb mold inserts for right and/or left side

Hydraulically Powered Split Tamper Bar System

Spreader Auger System
16 inch (40.6 cm) diameter, split reversible, heavyduty augers

Hydraulic Strike-Off

• hydraulically controlled strike-off plates
• individual controls for variable crown paving

Steering System

• 1 hydraulic sensor
• steer from the right or left-hand side of the machine
• automatic and manual steering, controlled from the operator’s platform

Power Wash System

• (2) 65 gallon (242 liter) water tank
• 2500 psi, 4 gallons (15.1 liters) per minute hydraulic power wash pump
• 25 ft. (7.6 m) high-pressure hose and wand

Single Axle Transport System

• hydraulically controlled transport axles
• single lever control from the operator’s platform
• wheels fold up during paving
• heavy duty towing hitch for travel removes for paving

Emergency Shut-Down System

• single switch operation
• electronic over hydraulic
• controls all critical functions of machine: travel, tamper, vibration

Operator’s Platform

• hydraulic system pressure gauges: travel, vibrator, tamper, auger
• hydraulic controls: travel, vibrator, tamper, pressure wash, strike-off, auger
• high visibility “wrap around” console
• engine controls and monitoring devices mounted on console
• safety railing
• engineered for easy monitoring of all machine functions
• canopy
